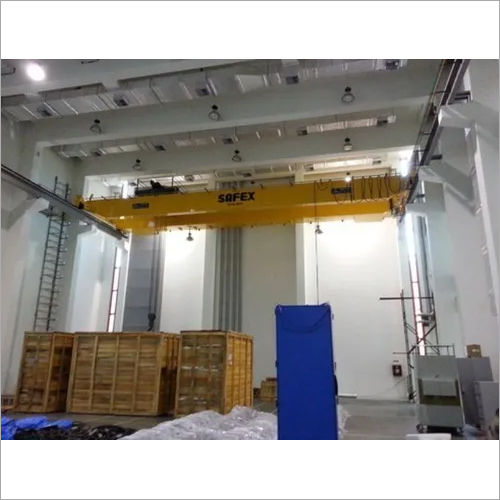

Double Girder EOT Cranes

Next > >

Send Inquiry

Product Code : 01

Brand Name : Safex

Price And Quantity

Minimum Order Quantity
1
Unit of Measure
Piece/Pieces

Price Range
1000000.00 - 10000000.00 INR

Product Specifications

Feature
Gantry Crane, Other
Product Type
Double Girder EOT Crane

Material
Metal
Crane Type
Gantry

Application
Construction, Ship Building, Hydro power, Railway, Material Yard, Storage Yard, Warehouse, Workshop, Factory, Outdoor Yard, Specified
Span Length
75 mtrs Meter (m)

Loading Capacity
2,00,000 Kilograms (kg)
Lifting Capacity
500 kgs Kilograms (kg)

Control Type
Pendant
Limit Switch
Yes

Emergency Stop
Yes
Color
Yellow

Product Description

Leveraging on our years of expertise in this domain, we have been able to manufacture, export and supply a superlative range of high grade Double Grider EOT Cranes. These cranes are manufactured in accordance with stated regulations in this domain. All our manufacturing process is conducted under the supervision of our quality controllers so as to ensure that only best quality is offered to our customers. Double Grider EOT Cranes offered by us is known for the following quality features:

Optimum performance
Minimal service requirements
Easy operation
Easy mounting

Other Details:

Double Grider E.O.T Cranes

We offer a gamut of Double Girder Type E.O.T. Cranes. Using stamped and certified raw material, we manufacture electrically overhead traveling cranes that adhere to various specifications of IS:3177 and IS:4137. Our range of double girder type EOT cranes is absolutely safe to use, can resist heavy loads and has simple operations. Various components of these cranes are fabricated as per IS:807.

The noted features of our products are as follows:

The structural built of these cranes are in conformation with ISO 4301
Safex cranes have minimum maintenance and emergency interlude
Limit-switches are easily adjustable
Load tested to 125% and certified by us after performing on these in our own workshops

The specifications are as follows:

Safe Working Load: 500 kgs. to 2,00,000 kgs.
Span: 5 mtrs to 75 mtrs
Height of Lift: As per customer specifications
Class of Duty / Standards: Equivalent to M3,M5, M7, M8 as per IS 3177 / IS 807
Speeds: Selected depending on client specifications / applications / shed dimensions
Crane Control: From floor through pendant push buttons, optionally through radio remote control / cabin with master control
Drive System: Twin drive through squirrel cage induction geared motors with built-in fail safe brakes
Motors: Squirrel cage induction hoisting motors with built-in fail safe brakes for hoisting, cross travel as well as long travel. Insulation class for all types of motors B/F
Brakes: Built-in Brakes for hoisting, cross travel and long travel motions
Power Supply System: To hoist and cross travel through trailing cables / drag chain to crane through shrouded bus bars / trailing cable / MS angle iron conductors / bare copper conductors (depending on customer's choice and application)
